Radarに乗って、行きたいところ、思いつくままにタイヤを転がしてみてほしい。

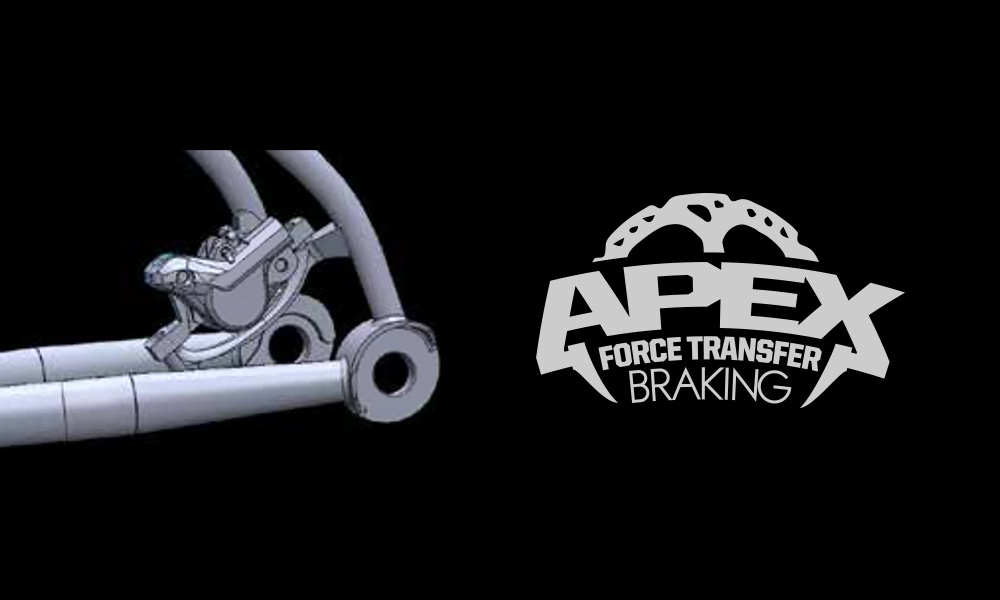

ダブルバテッドのクロモリで構成されるフレームとフォークには、ラックマウントはもちろんのこと全部で5つものボトルゲージ台座が装備。また、全グレードディスクブレーキ仕様でホイールの自由度も高く、最大で2.1インチのオフロードタイヤを装着することも可能なタイヤクリアランスがある。フロントフォークのブレーキマウントには調整のしやすいISマウントが採用されている。リアスプロケットはワイドレンジでフロントは46×30のチェーンリングを採用し、急な登り坂や下り、また目一杯荷物を積んだ状態であっても最適なギア調整が可能になっている。Radarという選択肢は、街乗りから本格的なバイクパッキングまであらゆるシチュエーションをカバーする最適なチョイスになるだろう。Radarはあなたをあらゆる場所へ連れて行ってくれる最高の相棒だ。
RADAR PRO ［ Marine blue w/ black ］
RADAR EXPERT ［ Black & tan ］
RADAR EXPERT ［ Iron gray w/ red ］
- BIKES
- SPECIFICATIONS
- GEOMETORY
RADAR PRO
- PRICE
-
- 完成車¥198,000（税別）
- SIZES
- 45cm, 48cm, 51cm
- COLOR
- Marine blue w/ black
- DRIVETRAIN
- SRAM GX mix
Marine blue w/ black
RADAR EXPERT
- PRICE
-
- 完成車¥125,000（税別）
- SIZES
- 45cm, 48cm, 51cm
- COLOR
- Black & tan
- DRIVETRAIN
- Shimano Deore mix
Black & tan
RADAR CAFÉ
- PRICE
-
- 完成車¥99,000（税別）
- SIZES
- 45cm, 48cm, 51cm
- COLOR
- Iron gray w/ red
- DRIVETRAIN
- Shimano Deore
Iron gray w/ red
- RADARPRO
- RADAREXPERT
- RADARCAFÉ
| Price | ¥198,000 (完成車) |
|---|---|
| Sizes | 45cm, 48cm, 51cm |
| Color（s） | Marine blue w/ black |
| Frame | Breezer butted chromoly steel, BSA Threaded BB, 135mm QR |
| Fork | Chromoly disc, 1 1/8”, rack / fender & side bottle mounts, 9×100 QR |
| Crankset | Breezer 2-pc w/ hollow axle, 46/30T |
| Bottom Bracket | Sealed-bearing |
| Front Derailleur | SRAM X5 |
| Rear Derailleur | SRAM GX, long cage |
| Shifters | SRAM S-700 HRD, 10-speed |
| Cassette | SRAM, 11-36, 10-speed |
| Chain | Shimano HG54 |
| Wheelset | 32H WTB STP i23 TCS Disc, Tubelss Compatible, Formula Sealed Bearing Hubs, 14g SS Spokes |
| Tires | WTB Riddler Race, 700 x 45c, TCS Tubeless, Folding |
| Brakeset | SRAM HRD-700 160mm Rotor |
| Brake Levers | SRAM |
| Headset | FSA 1 1/8” Semi-Integrated, 36° ACB-Sealed, 6.5mm Aluminum Top Cover |
| Handlebar | Oval Concepts 325, 6061 alloy, 31.8mm clamp, 125mm drop, 25° flare, 4° sweep |
| Stem | Breezer B-Road, 3D-forged 6061 stem body, +/-7° |
| Tape（Grip） | Oval Concepts 300 bar tape, suede |
| Saddle | WTB Volt Comp 142×265, Steel Rail |
| Seatpost | Breezer Setback, 6061 alloy, 27.2mm diameter |
| Fenders |
| Price | ¥125,000 (完成車) |
|---|---|
| Sizes | 45cm, 48cm, 51cm |
| Color（s） | Black & tan |
| Frame | Breezer butted chromoly steel, BSA Threaded BB, 135mm QR Rear Triangle w/ APEX DISC MOUNT |
| Fork | Chromoly disc, 1 1/8”, QR w/ rack, fender & side bottle mounts |
| Crankset | Breezer 2-pc w/ hollow axle, 46/30T |
| Bottom Bracket | Sealed-bearing |
| Front Derailleur | Shimano T4000 |
| Rear Derailleur | Shimano Deore, long cage |
| Shifters | Shimano Sora, 9-speed |
| Cassette | Shimano HG, 11-36t, 9-Speed |
| Chain | KMC 9-Speed |
| Wheelset | 32H Alex GDP24 Disc, Tubelss Compatible, Sealed Bearing Hubs, SS Spokes |
| Tires | WTB Riddler Race, 700×45c, Wire Bead |
| Brakeset | Tektro HY/RD, hydraulic disc, 160mm rotors |
| Brake Levers | Shimano Sora |
| Headset | FSA 1 1/8” Threadless, 6.5mm Aluminum Top Cover |
| Handlebar | Oval Concepts 325, 6061 alloy, 31.8mm clamp, 125mm drop, 25° flare, 4° sweep |
| Stem | Promax, 3D-forged 6061 stem body, +/-6° |
| Tape（Grip） | Oval Concepts 300 bar tape, suede |
| Saddle | WTB Volt Sport, Satin Steel Rail |
| Seatpost | Breezer Setback, 6061 alloy, 27.2mm diameter |
| Fenders |
| Price | ¥99,000 (完成車) |
|---|---|
| Sizes | 45cm, 48cm, 51cm |
| Color（s） | Iron gray w/ red |
| Frame | Breezer butted chromoly steel, BSA Threaded BB, 135mm QR Rear Triangle w/ APEX DISC MOUNT |
| Fork | Chromoly disc, 1 1/8”, QR w/ rack, fender & side bottle mounts |
| Crankset | FSA Comet 1x, forged 2-piece, 38T |
| Bottom Bracket | FSA sealed-cartridge |
| Front Derailleur | |
| Rear Derailleur | Shimano Deore shadow plus |
| Shifters | Shimano Deore, RapidFire Plus, 10-speed |
| Cassette | Shimano HG500, 11-42T, 10-speed |
| Chain | Shimano HG54 |
| Wheelset | WTB STP i23 TCS disc, tubeless compatible, Formula sealed bearing hubs, 14g SS spokes, 32H |
| Tires | Kenda Small Block 8, 29×1.9”, wire bead |
| Brakeset | Shimano MT200 hydraulic disc, 160mm rotor |
| Brake Levers | Shimano MT201 alloy |
| Headset | FSA 1 1/8” Threadless, 6.5mm Aluminum Top Cover |
| Handlebar | Breezer Sweeper Bar, 680mm width, 25 degree backweep |
| Stem | Breezer B-Road, 3D-forged 6061 stem body, +/-6 degree |
| Tape（Grip） | Breezer lock-on |
| Saddle | Breezer riveted, steel rail |
| Seatpost | Breezer Setback, 6061 alloy, 27.2mm diameter |
| Fenders |
| Size | 450 | 480 | 510 |
|---|---|---|---|
| Seat Tube, Center to Top | 450 | 480 | 510 |
| Top Tube, Effective | 565 | 575 | 585 |
| Head Tube Length | 120 | 140 | 155 |
| Seat Tube Angle | 74 | 74 | 73 |
| Head Tube Angle | 70.5 | 71 | 71.5 |
| Chainstay Length | 457 | 457 | 457 |
| Wheelbase | 1060 | 1068 | 1070 |
| Bottom Bracket Drop | 75 | 75 | 75 |
| Fork Offset | 45 | 45 | 45 |
| Stack | 547.7 | 575.9 | 589.6 |
| Reach | 402.7 | 393.4 | 399.1 |
| Standover | 711.52 | 736.22 | 762.67 |
| Stem | 80 | 80 | 80 |
| Handlebar Width | 40 | 42 | 42 |
| Crank | 170 | 170 | 175 |
| Wheel Size | 700c | 700c | 700c |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 |
