Radarに乗って、行きたいところ、思いつくままにタイヤを転がしてみてほしい。
ダブルバテッドのクロモリで構成されるフレームとフォークには、ラックマウントはもちろんのこと全部で5つものボトルゲージ台座が装備。 また、ディスクブレーキ仕様でホイールの自由度も高く、2.1インチのオフロードタイヤを装着することも可能なタイヤクリアランスがある。 リアスプロケットはワイドレンジでフロントは46×30のチェーンリングを採用し、急な登り坂や下り、また目一杯荷物を積んだ状態であっても完璧なギア調整が可能になっている。本年より新たに前後スルーアクスル仕様のXシリーズを新たにラインナップ。 Radarという選択肢は、街乗りから本格的なバイクパッキングまであらゆるシチュエーションをカバーする最適なチョイスになるだろう。
Radarはあなたをあらゆる場所へ連れて行ってくれる最高の相棒だ。

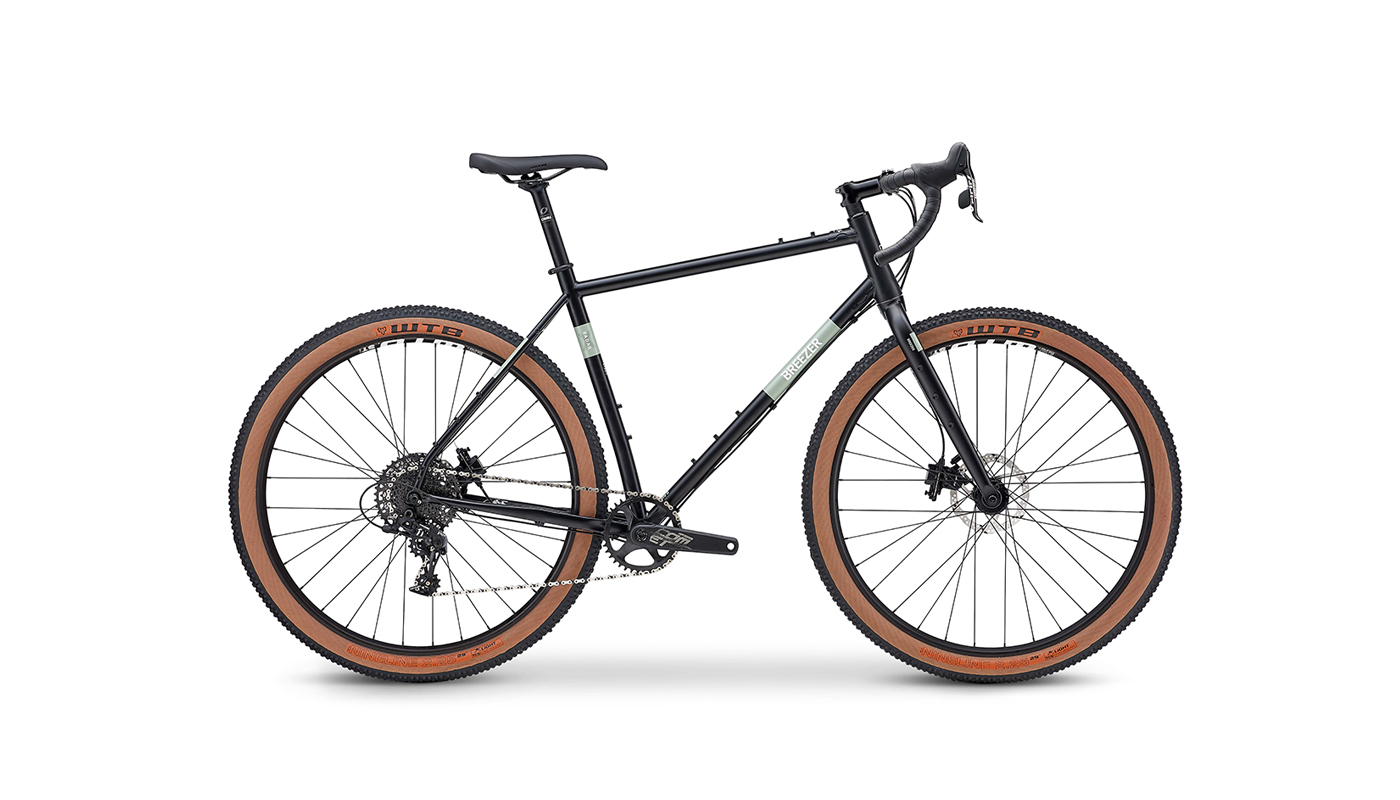

RADAR X ［ Matte Black ］

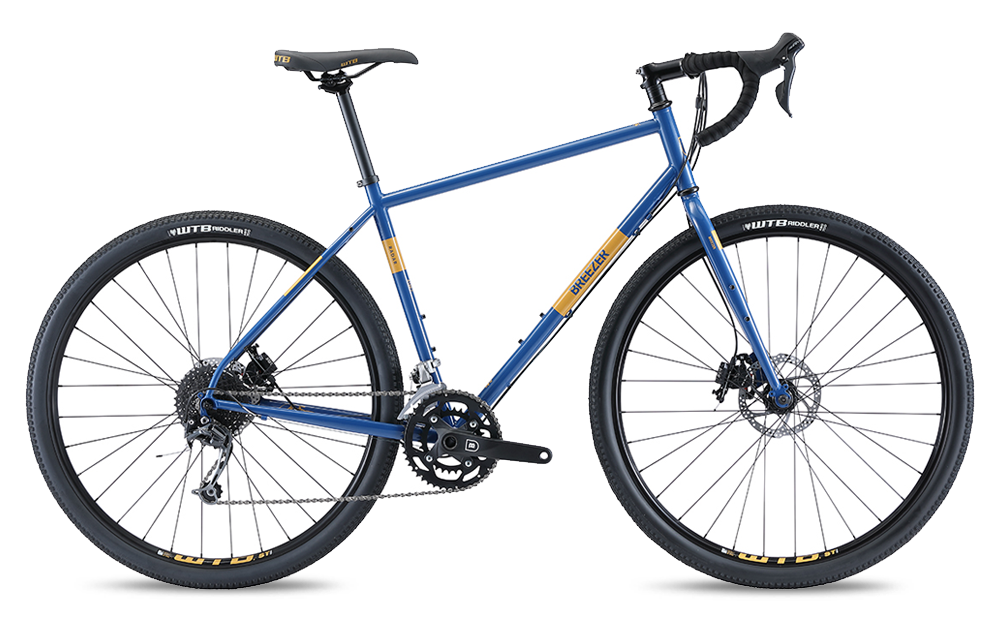

RADAR EXPERT ［ Blue Tan ］

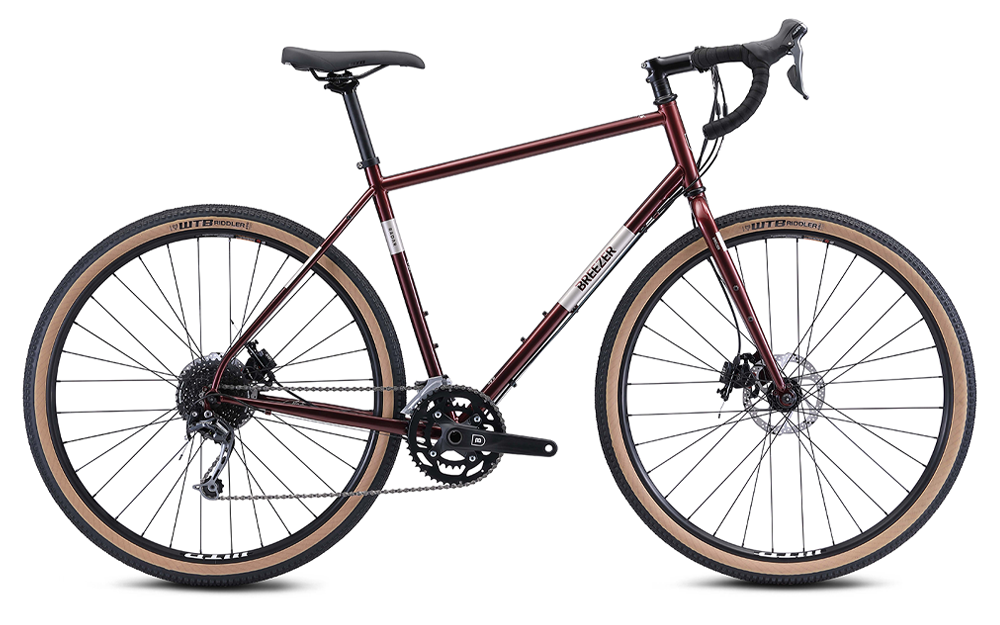

RADAR EXPERT ［ Cherry Cola ］
RADAR CAFÉ ［ Matte Cool Gray ］
- BIKES
- SPECIFICATIONS
- GEOMETORY
Matte Black
RADAR EXPERT
- PRICE
-
- 完成車¥140,800（税込）
- SIZES
- 45cm, 48cm, 51cm
- COLOR
- Blue Tan / Cherry Cola
- DRIVETRAIN
- Shimano Deore mix
Blue Tan
Cherry Cola

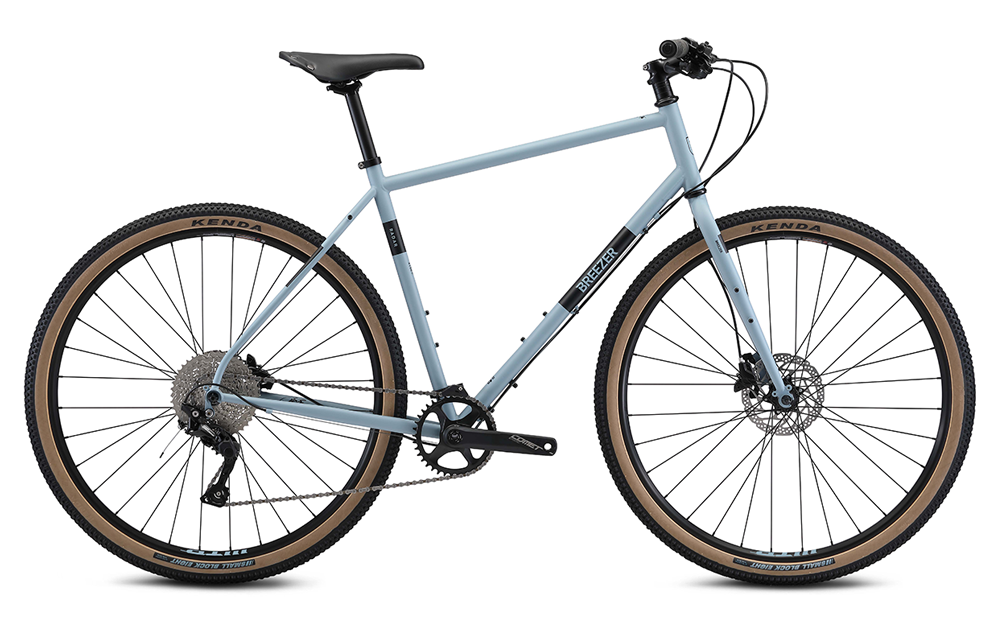

RADAR CAFÉ
- PRICE
-
- 完成車¥108,900（税別）
- SIZES
- 45cm, 48cm, 51cm
- COLOR
- Matte Cool Gray
- DRIVETRAIN
- Shimano Deore
Matte Cool Gray
- RADARX
- RADAREXPERT
- RADARCAFÉ
| Price | ¥188,000（完成車） |
|---|---|
| Sizes | 45cm, 48cm, 51cm |
| Color（s） | Matte Black |
| Frame | Breezer butted chromoly steel, BSA threaded BB, Boost 148mm through-axle |
| Fork | Chromoly disc, rack / fender & side bottle mounts, 110 x 15mm through-axle |
| Crankset | FSA Comet Modular, 38T |
| Bottom Bracket | FSA Mega Exo BSA stainless |
| Front Derailleur | |
| Rear Derailleur | SRAM APEX, long cage |
| Shifters | vSRAM APEX-1, 11-speed |
| Cassette | SRAM PG-1130, 11-42T, 11-speed |
| Chain | KMC X11 |
| Wheelset | WTB ST i25 TCS disc, 29”/700c tubeless, Formula sealed bearing hubs 148 x110 Boost, 14g SS spokes, 32H |
| Tires | WTB Nineline TCS, 700 x 52c (29 x 2.25), TCS Tubeless Ready, Lightweight Casing, Dual DNA Compound |
| Brakeset | TRP HY/RD hydraulic caliper, 160mm rotors |
| Brake Levers | SRAM APEX |
| Headset | FSA 1 1/8” Semi-Integrated, 36° ACB-sealed, 6.5mm aluminum top cover |
| Handlebar | Breezer Big Bar, 6061 alloy, 31.8mm clamp, 46-50cm width, 12° flare |
| Stem | Breezer B-Road, 3D-forged 6061 stem body, +/-7° |
| Tape（Grip） | Breezer black |
| Saddle | WTB Volt Comp 142x265, steel rail |
| Seatpost | Breezer setback, 6061 alloy, 30.9mm diameter |
| Fenders/Light | |
| TECH |
| Price | ¥128,000 (完成車) |
|---|---|
| Sizes | 45cm, 48cm, 51cm |
| Color（s） | Blue Tan / Cherry Cola |
| Frame | Breezer butted chromoly steel, BSA threaded BB , Apex disc mount 135mm QR |
| Fork | Chromoly disc, 1 1/8", QR w/rack, fender & side bottle mounts |
| Crankset | Breezer 2-pc w/hollow axle, 46/30T |
| Bottom Bracket | Sealed-bearing |
| Front Derailleur | Shimano Acera T3000 |
| Rear Derailleur | Shimano Deore, long cage |
| Shifters | Shimano Sora, 9-speed |
| Cassette | Shimano HG, 11-36t, 9-Speed |
| Chain | KMC X9 |
| Wheelset | WTB STP i23 TCS disc, tubeless compatible, Formula sealed bearing hubs, 14g SS spokes, 32H |
| Tires | WTB Riddler Race, 700 x 45c, wire bead |
| Brakeset | TRP HY/RD hydraulic caliper, 160mm rotors |
| Brake Levers | Shimano Sora |
| Headset | FSA 1 1/8” Threadless, 6.5mm Aluminum Top Cover |
| Handlebar | Oval Concepts 325, 6061 alloy, 31.8mm clamp, 125mm drop, 25 degree flare, 4 degree sweep |
| Stem | Breezer B-Road, 3D-forged 6061 stem body, +/-6 degree |
| Tape（Grip） | Oval Concepts 300 bar tape, suede |
| Saddle | WTB Volt Sport, Satin Steel Rail |
| Seatpost | Breezer Setback, 6061 alloy, 27.2mm diameter |
| Fenders/Light | |

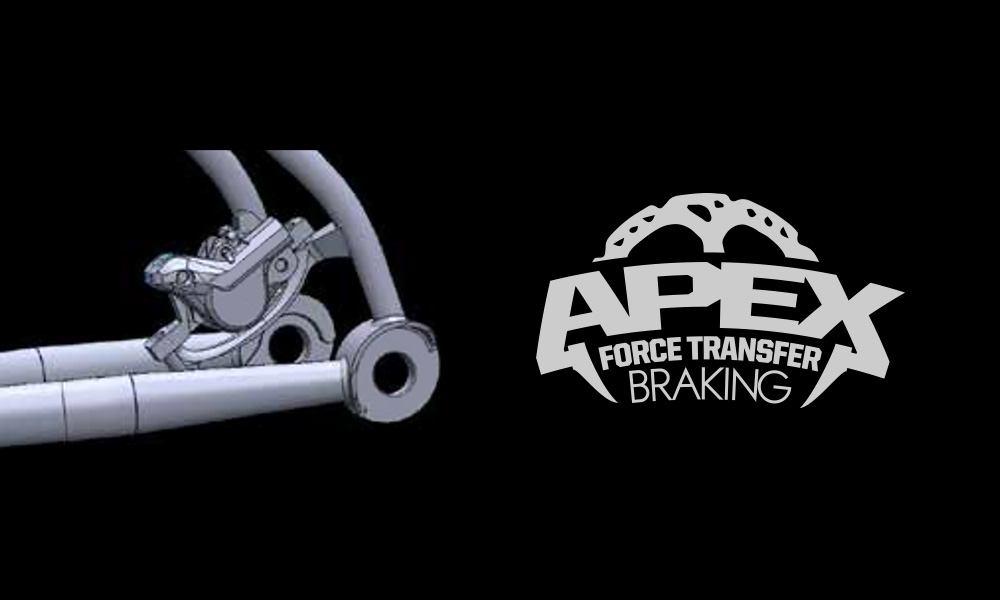

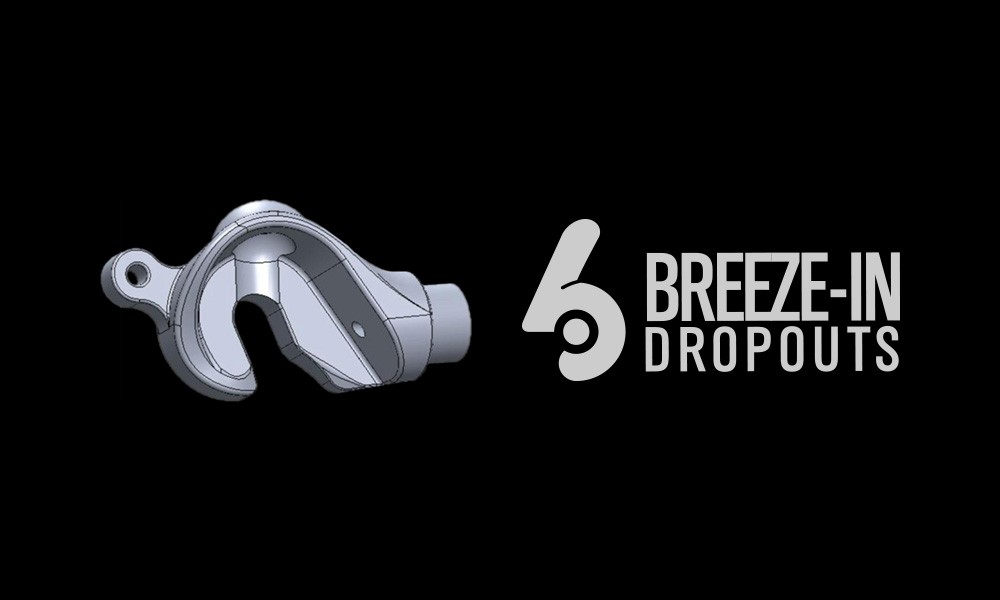

| TECH | APEX/BREEZE-IN |
| Price | ¥99,000 (完成車) |
|---|---|
| Sizes | 45cm, 48cm, 51cm |
| Color（s） | Matte Cool Gray |
| Frame | Breezer butted chromoly steel, BSA threaded BB , Apex disc mount 135mm QR |
| Fork | Chromoly disc, 1 1/8”, QR w/rack, fender & side bottle mounts |
| Crankset | FSA Comet 1x, forged 2-piece, 38T |
| Bottom Bracket | FSA sealed-cartridge |
| Front Derailleur | |
| Rear Derailleur | Shimano Deore shadow plus |
| Shifters | Shimano Deore, RapidFire Plus, 10-speed |
| Cassette | Shimano Deore M4100 11-42T, 10-speed |
| Chain | Shimano HG54 |
| Wheelset | WTB STP i23 TCS disc, tubeless compatible, Shimano Centerlock hubs, 14g SS spokes, 32H |
| Tires | Kenda Small Block 8, 29 x 1.9”, wire bead |
| Brakeset | Shimano MT200 hydraulic disc, 160mm rotor |
| Brake Levers | Shimano MT201 alloy |
| Headset | FSA 1 1/8” Threadless, 6.5mm Aluminum Top Cover |
| Handlebar | Breezer Riser Bar, 720mm width, 8° backweep |
| Stem | Breezer B-Road, 3D-forged 6061 stem body, +/-6 degree |
| Tape（Grip） | Breezer lock-on |
| Saddle | Breezer riveted, steel rail |
| Seatpost | Breezer Setback, 6061 alloy, 27.2mm diameter |
| Fenders/Light | |
| TECH | APEX/BREEZE-IN |
- RADARX
- RADAREXPERT/(CAFÉ)
| Size | 450 | 480 | 510 |
|---|---|---|---|
| Seat Tube, Center to Top | 450 | 480 | 510 |
| Top Tube, Effective | 580 | 590 | 600 |
| Head Tube Length | 120 | 120 | 155 |
| Seat Tube Angle | 74 | 73.5 | 73 |
| Head Tube Angle | 69 | 69 | 69 |
| Chainstay Length | 444 | 444 | 444 |
| Wheelbase | 1099 | 1103 | 1110 |
| Bottom Bracket Drop | 75 | 75 | 75 |
| Fork Offset | 51 | 51 | 51 |
| Stack | 568 | 568 | 601 |
| Reach | 417 | 421 | 421 |
| Standover | 775 | 788 | 762.67 |
| Stem | 70 | 70 | 80 |
| Handlebar Width | 480 | 480 | 500 |
| Crank | 170 | 170 | 175 |
| Wheel Size | 700c | 700c | 700c |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 |
| Size | 450 | 480 | 510 |
|---|---|---|---|
| Seat Tube, Center to Top | 450 | 480 | 510 |
| Top Tube, Effective | 565 | 575 | 585 |
| Head Tube Length | 120 | 120 | 155 |
| Seat Tube Angle | 74 | 72.5 | 72.5 |
| Head Tube Angle | 70.5 | 71.5 | 71.5 |
| Chainstay Length | 457 | 457 | 457 |
| Wheelbase | 1068 | 1068 | 1070 |
| Bottom Bracket Drop | 75 | 75 | 75 |
| Fork Offset | 45 | 45 | 45 |
| Stack | 576 | 598 | 612 |
| Reach | 393 | 386 | 391.4 |
| Standover | 711.52 | 736.22 | 762.67 |
| Stem | 70 | 80 | 80 |
| Handlebar Width | 400 | 420 | 420 |
| Crank | 170 | 170 | 175 |
| Wheel Size | 700c | 700c | 700c |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 |
